| Place of Origin: | China |
| Marca: | GME |
| Minimum Order Quantity: | 50 meters |
|---|---|
| Packaging Details: | Standard exporting packing |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 10,000 pieces per month |
| Type: | K/N/T/J/E/B/S/R | Insulator: | MgO |
|---|---|---|---|
| Sheath material: | Stainless steel, Inconel, etc. | Core number: | 2/4/6 cores |
| Outer Diameter: | 0.5-12.7mm | Usage: | Manufacturing MI Thermocouples |
| Evidenziare: | Insulated Thermocouple Cable Demanding Environments,Mineral Insulated Thermocouple Cable,Robust Thermocouple Cable |
||
Robust & Reliable: Mineral Insulated Thermocouple Cable for Demanding Environments
1. Overview

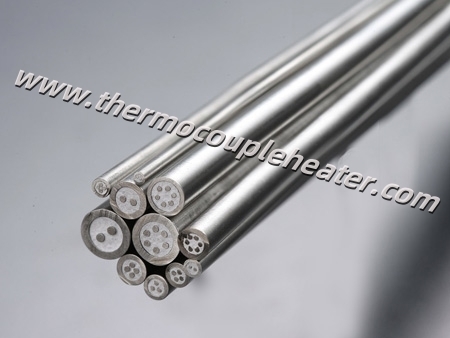

Ml cables is the mould-pressed solid Integrity of combined stainless steel protective pipe , magnesium oxide insulation powder and thermocouple materials. Its merits include press endurance, vibration resistance, bending capability, mini size, quick respond, etc. It acts as the key material of Ml thermocouple.
2. Features
Mineral insulated cable is widly applied in industry, a proven choice for high temperature probe fabrication.
High temperature resistance, anti-corrosion, anti-oxidation, long life time and rapid heat reponse.
Sheath material can be selected to fit different applications.
3. Structure chart
4. Structure data:
* High quality semi-finished Ml probe is on offer. Nice endings, high accuracy conforms to IEC584, gounded&ungrounded, minimum outer sheath diameter 0. 5mm for Ml thermocouple probe ungrounded, professional packing condition for protecting bare wires.
