Thermocouple Type J L-Shape Probe For Specific Orientation Measurement

Thermocouple Type J L-Shape Probe For Specific Orientation Measurement
Thermocouple Type J L-Shape Probe For Specific Orientation Measurement Thermocouple Type J L-Shape Probe For Specific Orientation Measurement Thermocouple Type J L-Shape Probe For Specific Orientation Measurement Thermocouple Type J L-Shape Probe For Specific Orientation Measurement

Grande immagine :  Thermocouple Type J L-Shape Probe For Specific Orientation Measurement

Dettagli:
Luogo di origine: Cina
Marca: GME
Termini di pagamento e spedizione:
Quantità di ordine minimo: 10 pezzi
Imballaggi particolari: Casi esportanti standard
Tempi di consegna: 5-10 giorni lavorativi
Termini di pagamento: L/C, T/T, Western Union, PayPal
Capacità di alimentazione: 100.000 pezzi al mese
Descrizione di prodotto dettagliata
Materiale di guaina: acciaio inossidabile Tipo: Termocoppia o RTD
Materiale del filo di piombo: Maglia SS / Fibra di vetro / PTFE / Kapton, su misura Dimensione della sonda: La lunghezza del diametro x, ha personalizzato
Evidenziare:

Type J thermocouple L-shape probe

,

Thermocouple probe for orientation measurement

,

RTD thermocouple with L-shape design

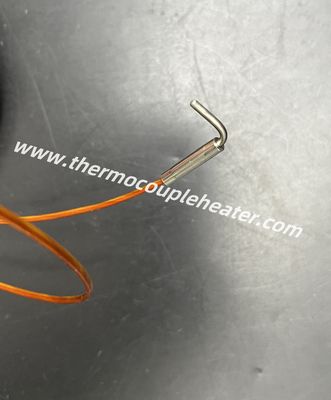

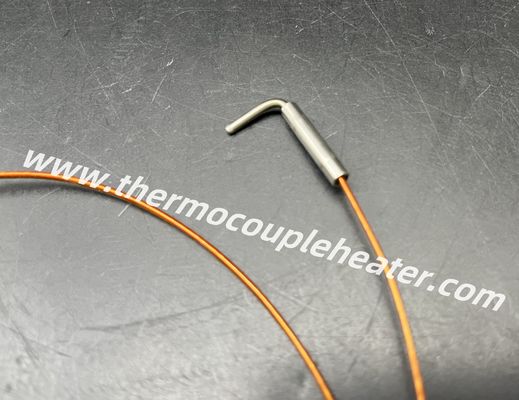

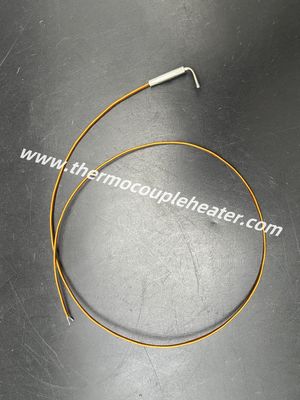

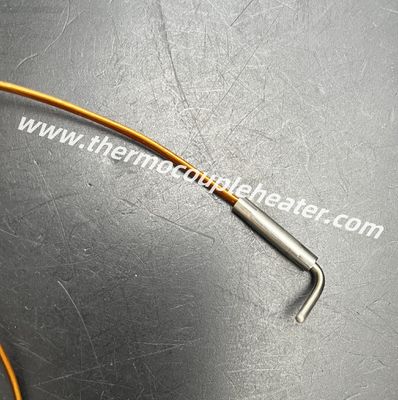

Thermocouple Type J L-Shape Probe For Specific Orientation Measurement





Product Description:



Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers. A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.



L-shape probe is designed for applications requiring precise temperature measurement in tight or complex spaces, the bent tip ensures the sensing junction is positioned exactly where you need it, maximizing accuracy and reliability.



Specification:


Size Customized
Calibration

Type J, K, T, E, N, S, PT100, PT1000, customized

Sheath Material

Stainless Steel 304 / 310 / 316 / Incoloy

Junction

Ungrounded , Grounded

Cable Insulation SS mesh / Fiberglass / PTFE / Kapton,customized
Cable length

1 M, 2M, 5M...., customized



























Feature:



1. Simple assembly and easy to change;

2. Fast heat response time;

3. High precision measurement;

4. Long service life.





Applicable Scope:

♦ Pipe and ventilation systems
♦ Hydraulic and pneumatic systems
♦ Cooling and heating systems
♦ Water supply and water heating systems
♦ Air-conditioning systems
♦ Automation system temperature mensuration and control
