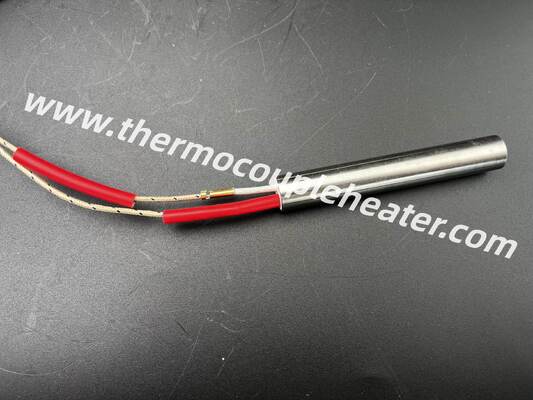

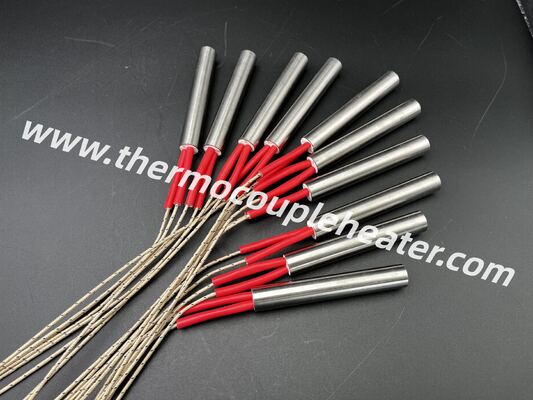

High-Temperature Cartridge Heaters: Incoloy 800 Sheath Built For 750°C - 800°C Applications

When it comes to demanding industrial heating, standard heaters often fail under extreme temperatures. That’s why our heavy-duty cartridge heaters are engineered with premium materials and smart thermal design to ensure maximum reliability and extended service life in environments ranging from 750°C to 800°C.

Here is what makes our high-temperature cartridge heaters stand out:

• Premium Incoloy 800 Sheath: Offers exceptional resistance to oxidation, scaling, and corrosion at elevated temperatures, ensuring superior heat transfer and structural integrity.

• Imported NiCr8020 Resistance Wire: Utilizing top-tier imported Nickel-Chromium alloy wire to provide uniform heat distribution and outstanding stability under continuous high-power operation.

• High-Temperature Grade MgO Insulation: Filled with specialized high-purity, high-temperature magnesium oxide powder to guarantee excellent dielectric strength and rapid thermal conductivity.

• External Connection Design: Features durable rigid external pins that are built to withstand intense high temperatures directly at the cartridge exit. By extending the connection interface outside the main heating zone, it ensures that the transition to the flexible lead wires happens

• Pure Nickel Fiberglass Insulated Leads: Equipped with high-grade pure nickel conductors wrapped in high-temperature fiberglass insulation, offering outstanding electrical reliability and flexibility in extreme heat.

Custom Specifications Available: Whether you need specific imperial/metric diameters, custom wattages, or specialized length configurations, our technical team can customize the perfect thermal solution for your machinery.
